SANCO®

SANCO® tube – the bare copper tube for sanitary and heating installations



SANCO® is Europe's most widely installed bare copper installation tube. It is produced according to a continuously further developed manufacturing processs that makes the tubes extremely safe, durable and therefore long-lasting.

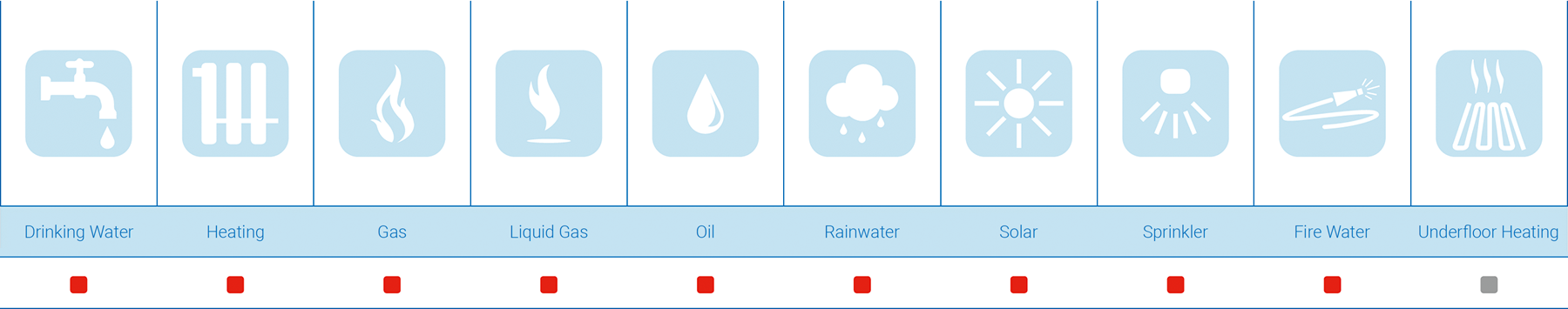

Copper is a sustainable material that is 100% recyclable. The tubes are gas-tight, oxygen diffusion-proof, UV-resistant and compatible with fittings from a wide range of manufacturers. SANCO® tubes are applicable in the areas of drinking water, heating, gas, liquid gas, oil, rainwater and solar.

SANCO® tubes are permanently certified and stand for a consistently high quality that exceeds the requirements demanded by regulations and standards.






Characteristics

  • Manufactured in accordance with European Standard DIN EN 1057
  • Physical state: R220 (coils) – R290 (straight pipes)
  • Absolute roughness: e.= 0.0015 mm
  • Linear thermal expansion coefficient: 0.0168 mm/m°C
  • Thermal conductivity: λ = 364 W/m°C (at 20°C)
  • Carbon residue: C<0.06 mg/dm2 (coils of tubing)
  • Does not soften at high temperatures
  • Completely impermeable to gases
  • Resistant to UV ray

Deliverable in 50 m coils of tubing: 6-22 mm (note: 22 mm diameter available in 25 m coils) and 5 m straight tubes: 6-108 mm (sizes up to 267 mm available upon request)

CAN BE USED

  • in hot and cold drinking water
  • Distribution of combustible liquids and gases
  • Radiant panels
